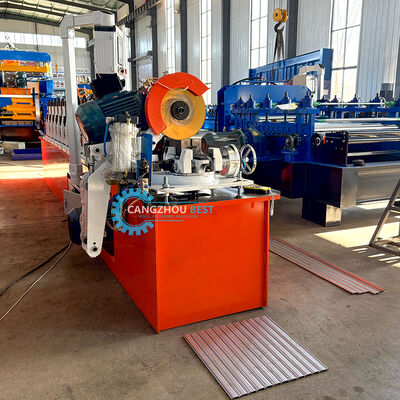

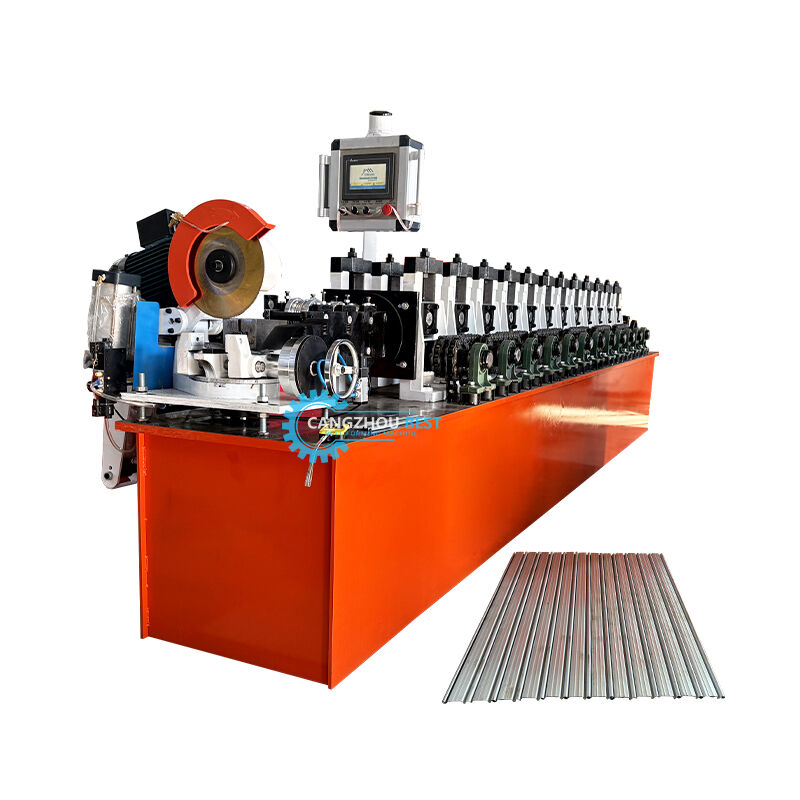

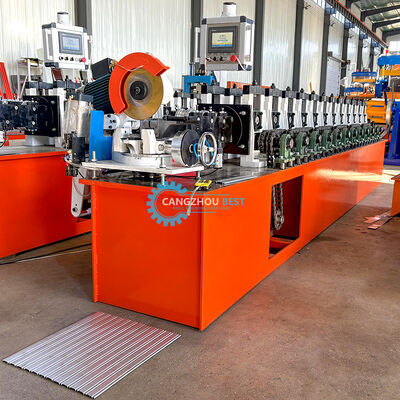

Automatic Metal Shutter Door Slat Cold Roll Forming Machine

Imagem Grande : Automatic Metal Shutter Door Slat Cold Roll Forming Machine

Detalhes do produto:

Lugar de origem:	China hebei
Marca:	CHBEST
Certificação:	CE/BV/SGS
Número do modelo:	XY77

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1 conjunto
Detalhes da embalagem:	filme plástico para máquina nua
Tempo de entrega:	20-30 dias
Habilidade da fonte:	20 conjuntos/mês

Contato

Automatic Metal Shutter Door Slat Cold Roll Forming Machine

descrição

Nome do produto:	Máquina formadora de rolos a frio para veneziana automática de metal	Velocidade da máquina:	8-12m/min
Sistema acionado:	cadeia ou caixa de velocidades	Sistema de controle:	CLP
Tipo de corte:	Hidráulico	Garantia:	2 anos
Destacar:	automatic metal shutter door machine , cold roll forming shutter machine , slat roll forming machine with warranty

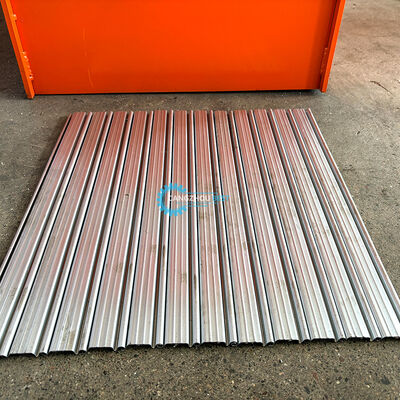

Automatic Metal Shutter Door Slat Cold Roll Forming Machine

Roller Shutters are one of the most versatile door products available for access control to almost all sizes of opening and perfect for covering and securing doorways, windows and other apertures.

Our factory is specialize in designing, making and installing roller shutter door forming machine. Our machines are selled all over the world.

Working flow
Automatic Metal Shutter Door Slat Cold Roll Forming Machine 0
Machine components

No.	Name	Qty
1.	De-coiler	1 Set
2.	Roll Forming Machine	1 Set
3.	Hydraulic Cutting Device	1 Set
4.	PLC Control Box	1 Set
5.	Hydraulic Pump	1 Set
6.	Output table	1 Set

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	300mm	500mm
Capacity	From 3-5tons	From 5-15 tons
Inner diameter	φ450-550mm	φ450-550mm
Outer diameter	φ1500mm	φ1800mm

roll forming

Item

Parameter detail

Processing Material

GI and PPGI

Material thickness

0.25-0.8mm

Machine frame

360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision

Machine siding panel

plate type	Pillar type(option)

Plate thickness:20mm	Pillar thickness:30mm
Painting:normal painting	painting:Chroming

Forming stations

10-22 stations(according to the profiles)

Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft

φ60-70mm high garde No.45 steel after treatment,

Machine spacers

CNC lathing in high-precision

Machine bearings

China Haerbin bearing or SKF international bearing(option)

Driving system

1 inch chain or gear box(option)

Machine power

3kw-5.5kw(according to the profiles)

Machine working speed

8-12m/min or 10-30m/min(option)

Machine adjust type

After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

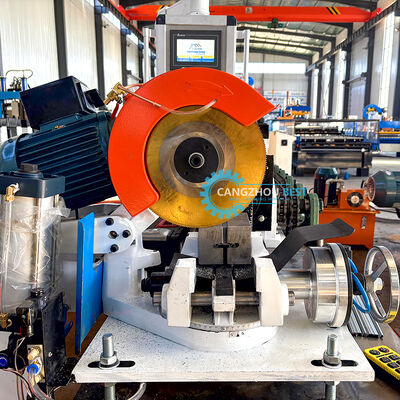

Cutting

Type	Mould cutting type
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the upper balde can not be straight. this is technology
Working	Hydraulic type

Stacker

Type	Manual	Auto(option)
Length	1.5m-2m	6m or 12m

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

Automatic Metal Shutter Door Slat Cold Roll Forming Machine 1

FAQ

1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4) Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
